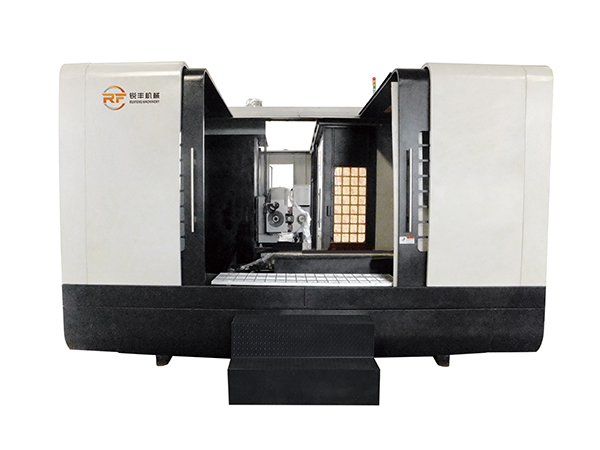

大孔徑深孔鉆（型號：RFDD1208-1200 RFDD1612-1500 RFDD2112-1500 )
一、 詳情說明
二、產品中心
1、大孔徑深孔鉆簡述
大孔徑深孔鉆是集噴吸鉆,BTA鉆，刀粒鉆,槍鉆于一體的深孔加工機床，鉆孔直徑可達Φ12Omm
2、應用領域
模具、液壓、石油管道、核電等行業。
3、 主要特點
高效率，高精度，高光潔度的大孔加工,,光潔度可達(Ra0.4~0.8)。
四、 技術參數
以下是OFFICE 版本的文檔（請下載使用）
| RFDD?孔徑系列深孔鉆 MACROPORE BTA SPRAY AND SBSORB DRILLING MACHINE | |||||
| 鉆銑復合系列深孔鉆 | 技術參數 TECHNICAL PARAMETERS | ||||
| 項? | 單 位 | RFDD1208-1200 | RFDD1612-1500 | RFDD2112-1500 | |
| 加??程Processing tracel | 鉆孔直徑Diameter of dirll hole | mm | Φ3-Φ35(槍鉆/Gun drill)Φ18-Φ65(BTA/噴吸鉆/Spray and absorbdrill) | ||
| X軸（?作臺?程）X-axis (travel of work bench) | mm | 1200 | 1600 | 2100 | |
| Y軸（滑板?程）Y-axis (travel of sliding plate) | mm | 800 | 1200 | 1500 | |
| 槍鉆最?孔深度Maximum_x005f_x005f_x005f_x0001_drill_x0001_depth of gun drill | mm | 1200 | 1500 | 1500 | |
| 噴吸鉆最?鉆孔深度 Maximum drill depth of spray and absorb drill | mm | 800 | 1000 | 1000 | |
| 加工速度Processing | 槍鉆主軸最?轉速Maximum rotating speed of gun drill main shaft | rpm | 4000 | 4000 | 4000 |
| ?作臺X軸移動速度X-axis movement speed of work bench | m/min | 0-10000 | 0-10000 | 0-10000 | |
| 滑臺Y軸移動速度Y-axis movement speed of slide guide way | m/min | 0-10000 | 0-10000 | 0-10000 | |
| 槍鉆主軸進給速度Feeding speed of gun drill main shaft | m/min | 0-3000 | 0-3000 | 0-3000 | |
| 動?參數Dynamic parameter | X軸進給電機X-axis feeding motor | N.m | 22 | 30 | 30 |
| Y軸進給電機Y-axis feeding motor | N.m | 22 | 40 | 40 | |
| Z軸進給電機Z-axis feeding motor | N.m | 22 | 22 | 22 | |
| 鉆削主軸電機Motor of drill stem main shaft | kW | 18.5/22 | 18.5/22 | 18.5/22 | |
| 機床總功率Total power of machine tool | kW | 54 | 60 | 60 | |
| 其他Other | 冷卻液壓?范圍Pressure scope of cooling liquid | Mpa | 槍鉆/Gun drill 2-11 噴吸鉆 Spray and absorb drill 0.1-2 | ||
| 冷卻液流量范圍Pressure scope of cooling liquid | L/min | 槍鉆/Gun drill 6-110 噴吸鉆/Spray and absorb drill 40-165 | |||
| ?作臺尺?Size of work bench | mm | 1300X1000 | 1700X1200 | 2200X1200 | |
| ?作臺承重Load-bearing_x005f_x005f_x0001_ofworkbanch | T | 8 | 10 | 12 | |
| 機床外形尺?Externalsizeofmachinetool | mm | 6300X3700X3100 | 6600X4500X3600 | 6600X5500X3600 | |
| 機床總重量Total weight of machine tool | T | 13 | 21 | 24 | |
| 機床控制系統 | 新代/三菱/發那科SYNTEC/MITSUBISH/FANUC | ||||
| 本公司機床不斷進?研發改良，如有更改規格恕不另?通知。本資料圖?僅供參考，以實際產品樣為準。 | |||||
| RFDD?孔徑系列深孔鉆 MACROPORE BTA SPRAY AND SBSORB DRILLING MACHINE | |||||
| 產品特點： | |||||
| 數控?臥深孔鉆床是?種以深孔鉆削為主的專?機床。 | |||||
| CNC vertical deep hole drilling machine is a special machine tool based on deep hole drilling | |||||

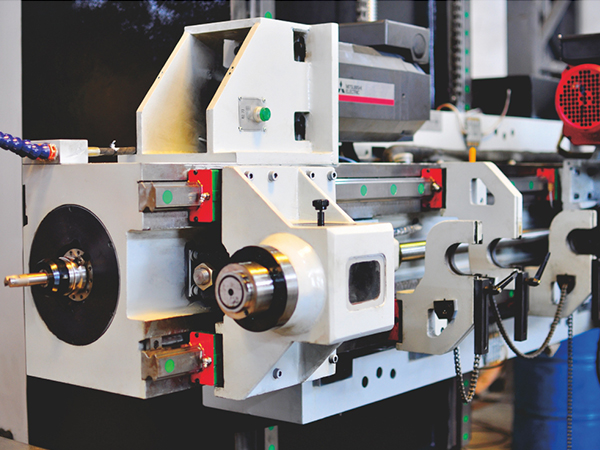

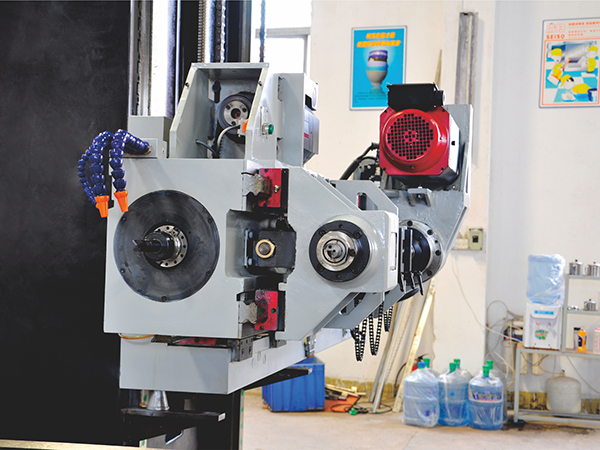

| 導 向 座 采 ? 雙 邊 ? 撐，加 ? 時 兩 邊 均 勻 受 ? 均 勻，精 度 保 持 性 好 。 | |||||
| The guide seat adopts bilateral support and the two sides are evenly stressed during processing and the precision is kept good. | |||||
| 采?槍鉆加?，加?效率?，光潔度?。 | |||||
| Adopts gundrill for processing high e?ciency and high ?neness of hole | |||||
| ?泛應?于模具、汽?、內燃機、航空航天、家電、液壓配件等?業 | |||||
| Widely used in molds, automobiles, internal combustion engines,aerospace, home appliances, hydraulic parts and other industries. | |||||
