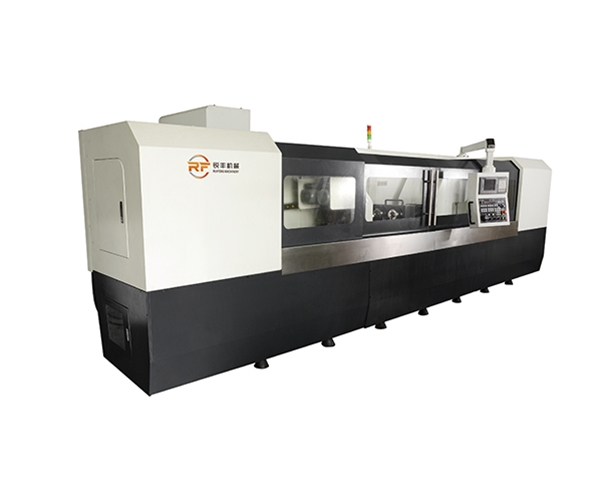

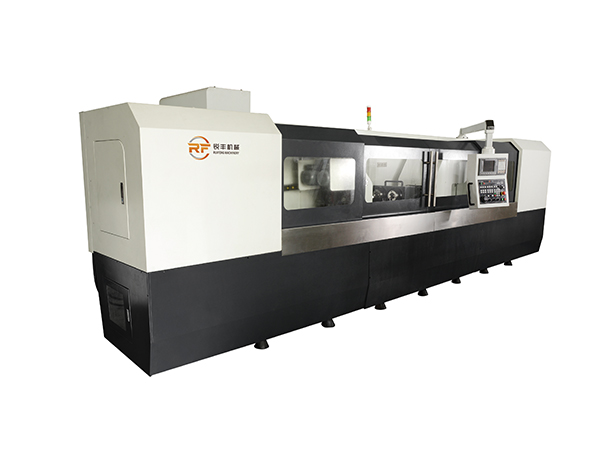

雙主軸棒料深孔鉆（型號：RFD2Z-600 RFD2Z-800 RFD2Z-1000 RFD2Z-1600 )
一、產品中心
雙主軸系列深孔鉆簡述 雙主軸深孔鉆為軸類零件中心深孔加工專用機床，配有自動夾緊系統，高壓油冷系統。大大提高軸類零件深孔加工的效率、精度、光潔度，是軸類零件深孔加工的最佳之選。
二、 應用領域：廣泛應用于汽車、軍工、醫療設備、熱流道等行業。
1. 雙主軸同三、主要特點時加工，加工效率是普通機床的2倍。
2. 液壓自動夾緊系統,實現自動裝夾，裝夾時間短。
3. 槍鉆和工件同時反方向旋轉，有效提高孔的同心度。

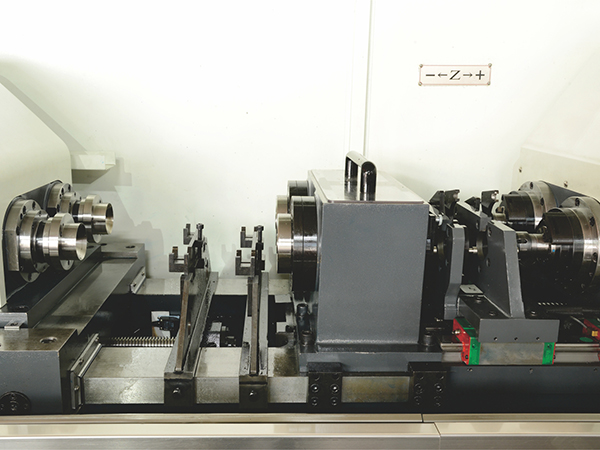

四、 產品詳情

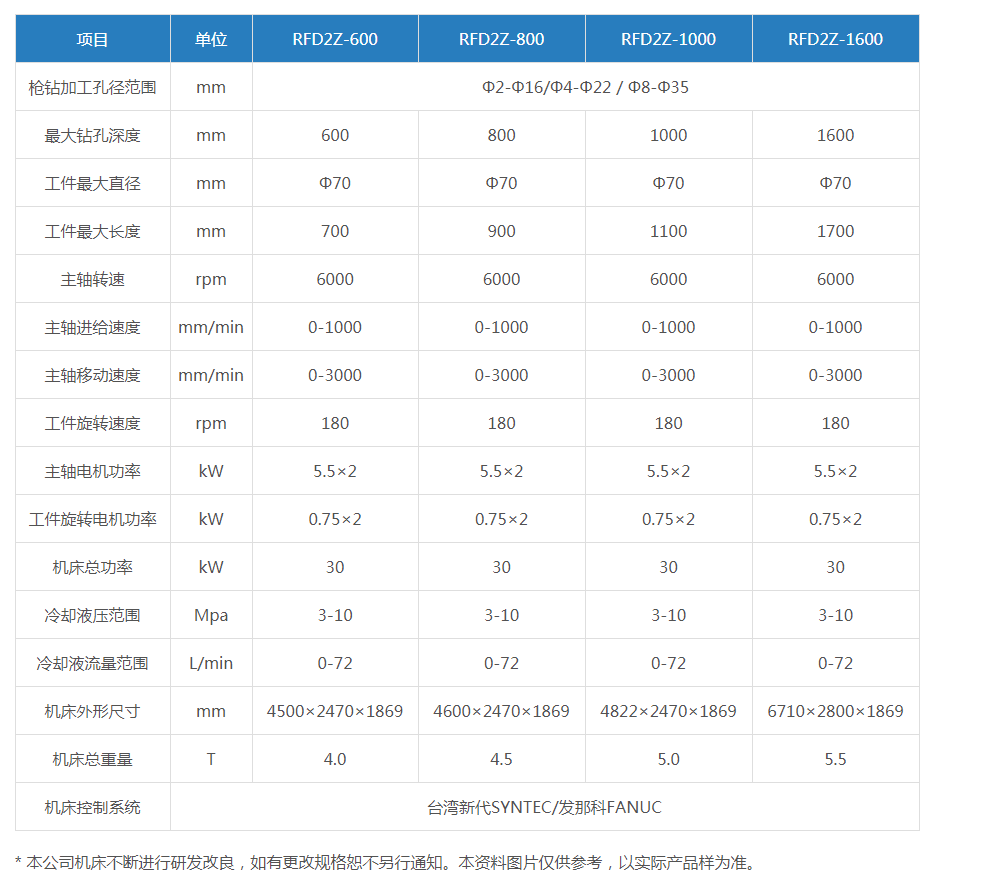

五、技術參數
以下是OFFICE 版本的文檔（請下載使用）
| RFD2Z雙主軸系列深孔鉆 RFD2Z 2-SPINDLE SERIES DEEP HOLE DRILING | |||||
| 技術參數/TECHNICAL PARAMETERS | |||||
| 項? | 單位 | RFD2Z-600 | RFD2Z-800 | RFD2Z-1000 | RFD2Z-1600 |
| 槍鉆加?孔徑范圍Diameter scope of gun drill | mm | Φ2-Φ16/Φ4-Φ22/Φ8-Φ35 | |||
| 最?鉆孔深度Maximum diameter of workpiese | mm | 600 | 800 | 1000 | 1600 |
| ?件最?直徑Maximum diameter of workpiece | mm | Φ70 | Φ70 | Φ70 | Φ70 |
| ?件最??度Maximum length of workpiece | mm | 700 | 900 | 1100 | 1700 |
| 主軸轉速Rotating speed of main shaft | rpm | 6000 | 6000 | 6000 | 6000 |
| 主軸進給速度Feeding speed of main shaft | mm/min | 0-1000 | 0-1000 | 0-1000 | 0-1000 |
| 主軸移動速度Movement speed of main shaft | mm/min | 0-3000 | 0-3000 | 0-3000 | 0-3000 |
| ?件旋轉速度Rotating speed of workpiece | rpm | 180 | 180 | 180 | 180 |
| 主軸電動功率Motor power of main shaft | kW | 5.5X2 | 5.5X2 | 5.5X2 | 5.5X2 |
| ?件旋轉電機功率Power of workiece rotating motor | kW | 0.75X2 | 0.75X2 | 0.75X2 | 0.75X2 |
| 機床總功率Total power of machine tool | kW | 30 | 30 | 30 | 30 |
| 冷卻液壓范圍Pressure scope of cooling liquid | Mpa | 3-10 | 3-10 | 3-10 | 3月10日 |
| 冷卻液流量范圍Flowrate scope of cooling liquid | L/min | 0-72 | 0-72 | 0-72 | 0-72 |
| 機床外形尺?External machine tool | mm | 4500X2470X1869 | 4600X2470X1869 | 4822X2470X1869 | 6710X2800X1869 |
| 機床總重量Total weight of machine tool | T | 4 | 4.5 | 5 | 5.5 |
| 機床控制系統 Machtool control system | 臺灣新代SYNTEC/發那科FANUC | ||||
| 本公司機床不斷進?研發改良，如有更改規格恕不另?通知。本資料圖?僅供參考，以實際產品樣為準。 | |||||
| FEATURES/主要特點： | |||||
| RFD2Z雙主軸系列深孔鉆簡述 | |||||
| 雙主軸深孔鉆為軸類零件中?深孔加?專?機床，配有?動夾緊系統，?壓油冷系統。??提?軸類零件深孔加?的效率、精度、光潔度，是軸類零件深孔加?的最佳之選。 | |||||
| Dobble main shafte deep-hole drill is dedicated machinetools for central deel-holeprocessing of | |||||
| shaft parts with a view to providing the solution featuring high e?ciency, high precision and high Total weight of machine tool | |||||
| ?neness to deep-hole processing of shaft parts of oustomers. | |||||
| APPLICATIONFIELD應?領域 | |||||
| ?泛應?于汽?、軍?、醫療設備、熱流道等?業。 | |||||

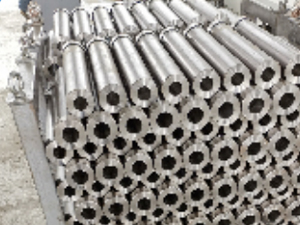

| Central deep-hole processing of shaft parts. | |||||
| FEATURES/主要特點： | |||||
| 1. 雙主軸同時加?，加?效率是普通機床的2倍。 | |||||
| Two spindle machining at the same time work e?ciency is 2 times the ordinary machine tools. | |||||
| 2. 液壓?動夾緊系統，實現?動裝夾，裝夾時間短。 | |||||
| The hydraulic automatic clampingsystem realizes automatic clamping and short clamping time. | |||||
| 3.槍鉆和?件同時反?向旋轉，有效提?孔的同?度。 | |||||
| Simultaneously the gun drill and theworkpiece rotate in opposite directions and the concentricity of | |||||
| the hole is e?ectively improved. | |||||
